GSS inviscid run (50 knots, 0 degree yaw) using PUMA

Return to the table

Surface plots:

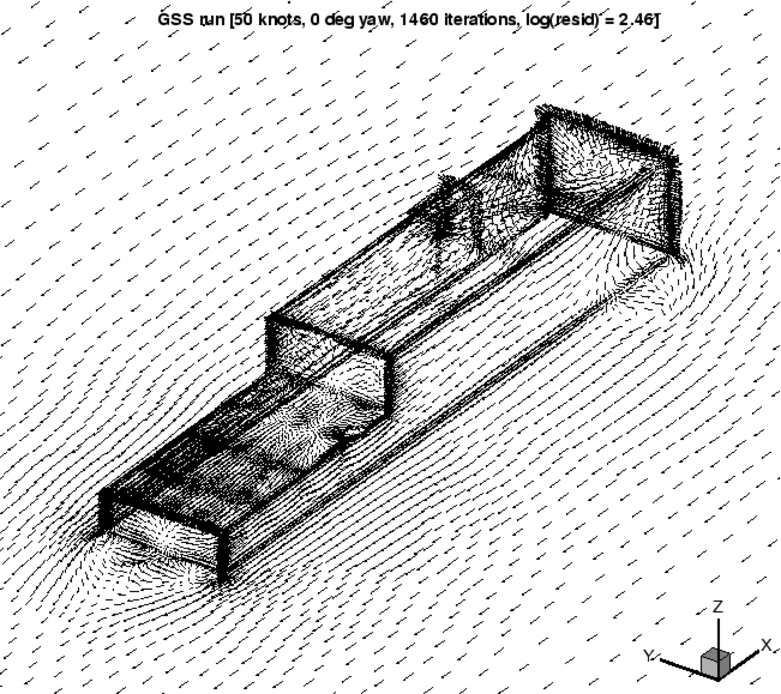

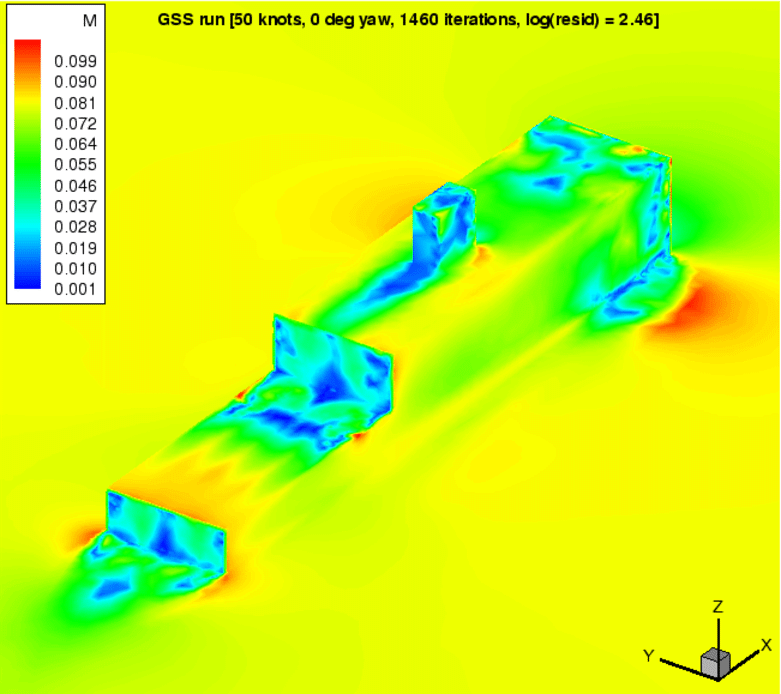

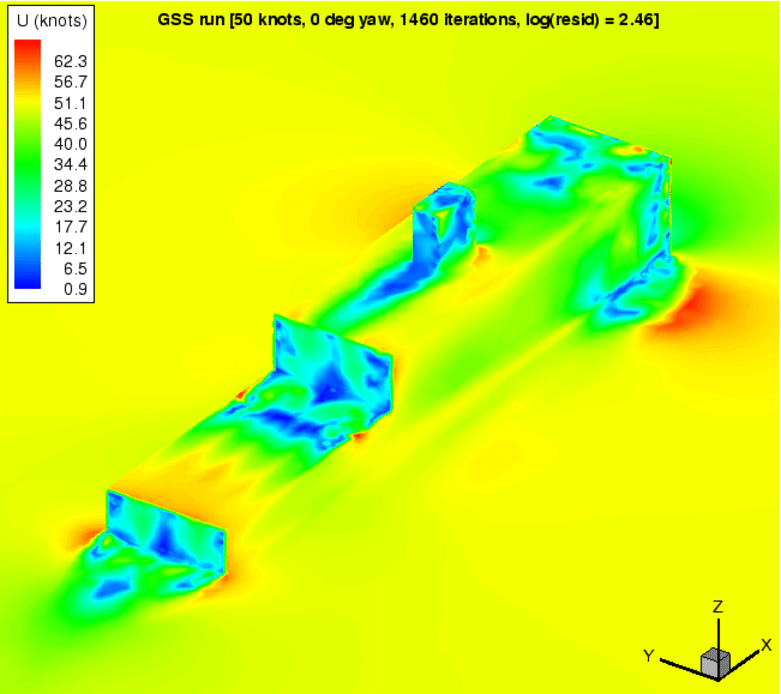

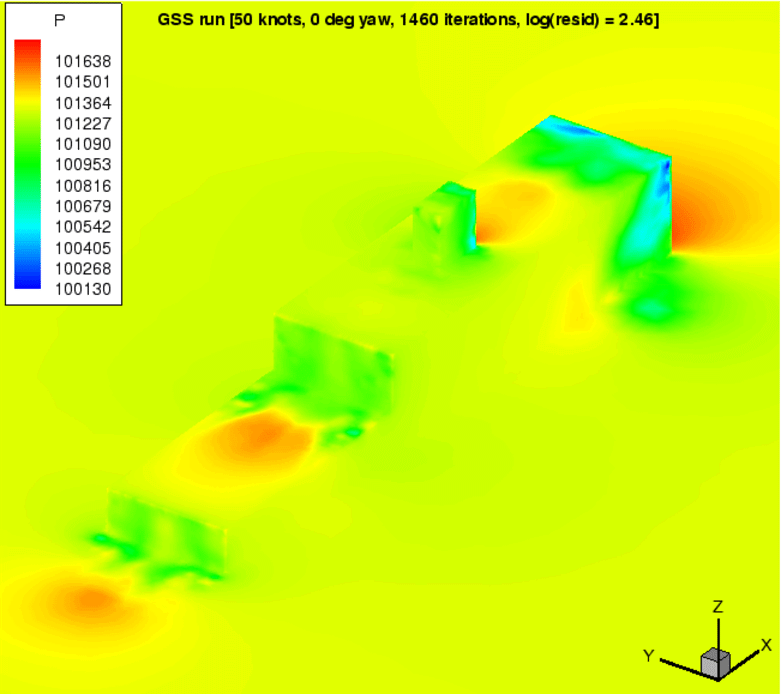

Velocity vectors Mach number Pressure Total velocity (in knots)
Velocity vectors Mach contours Pressure contours Velocity contours

Plots for slice Y=0:

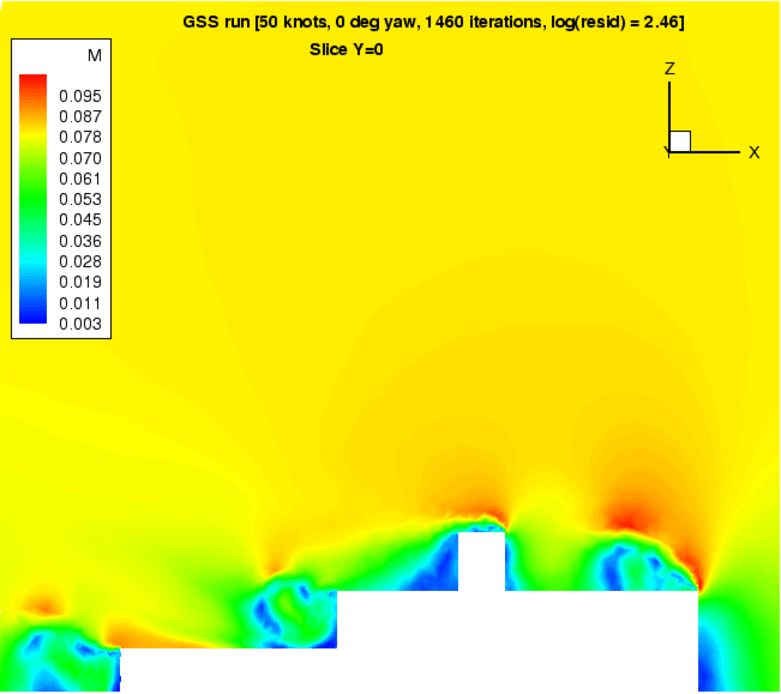

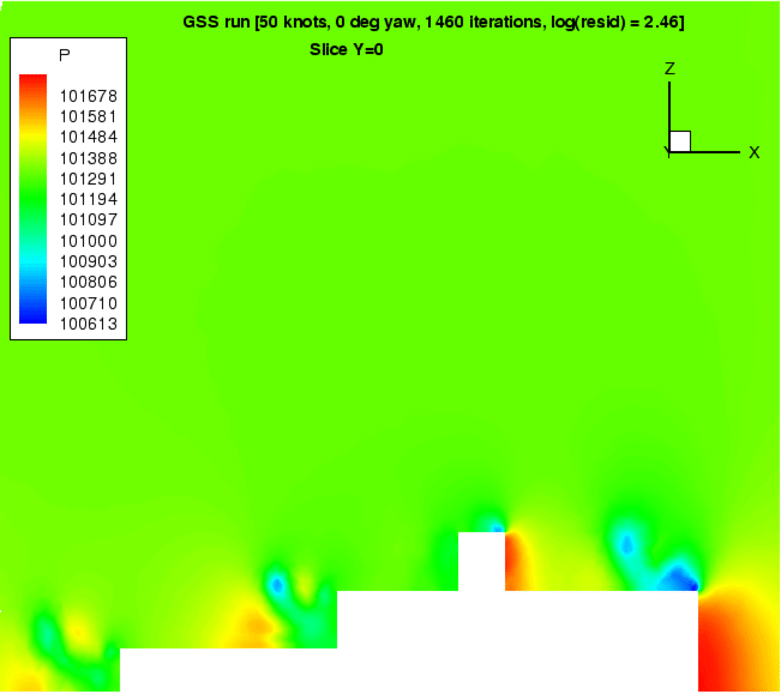

Mach number Pressure
Mach contours Pressure contours

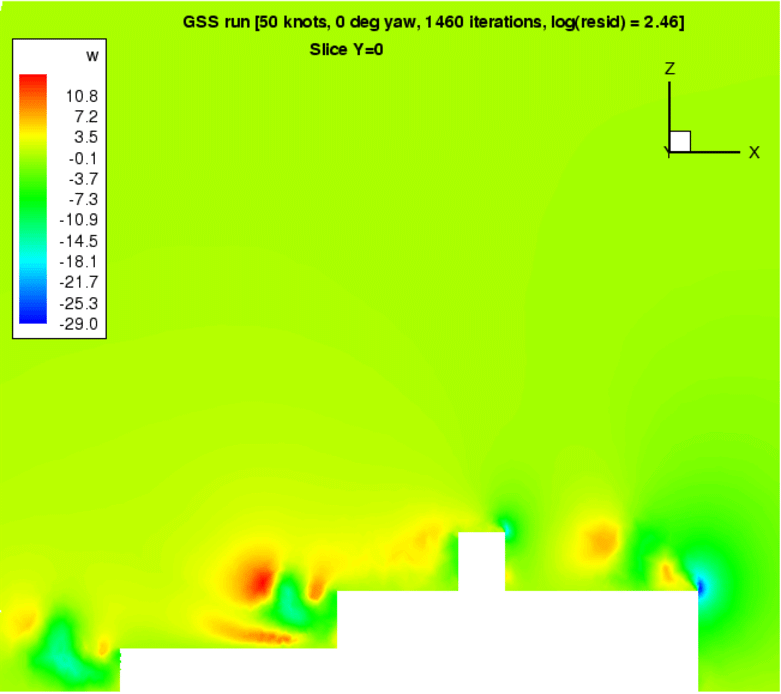

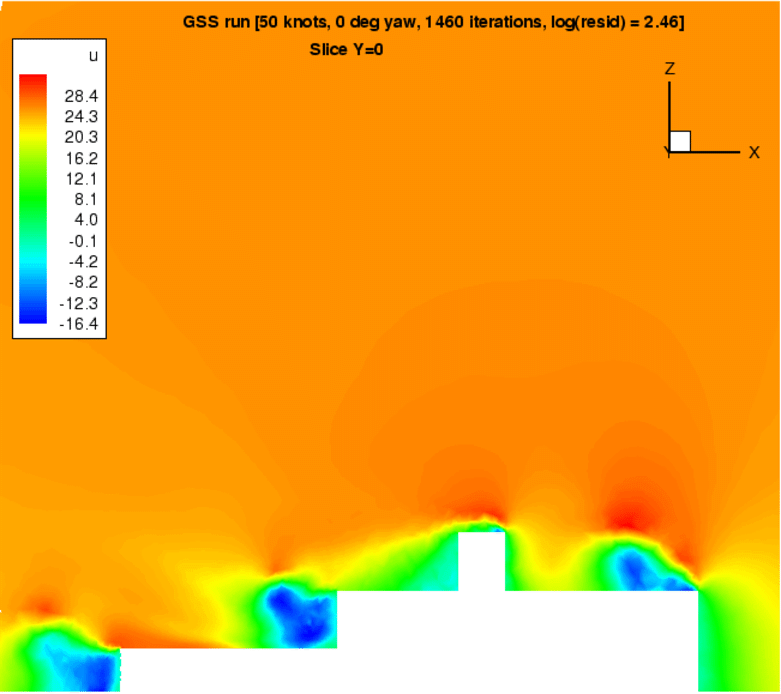

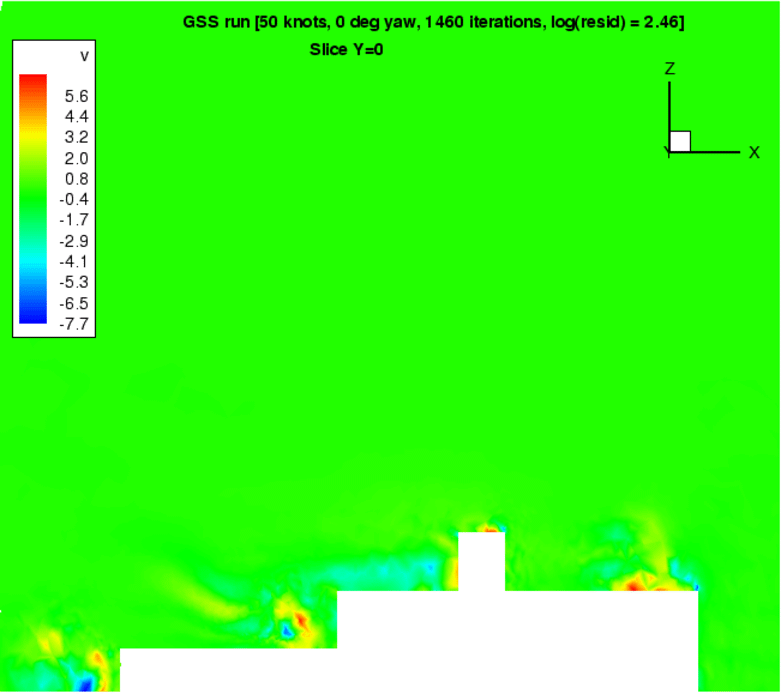

X component of velocity Y component of velocity Z component of velocity
x-velocity component y-velocity component z-velocity component
